Product DescriptionCompany Info.<>
- Model:
- K0220
- Processing customization:
- Yes
- Precision grade:
- 2.5
- Maximum working pressure:
- 4 MPa
- Overall dimension:
- 100 mm
- Applicable scope:
- optional
- Range range:
- optional kPa

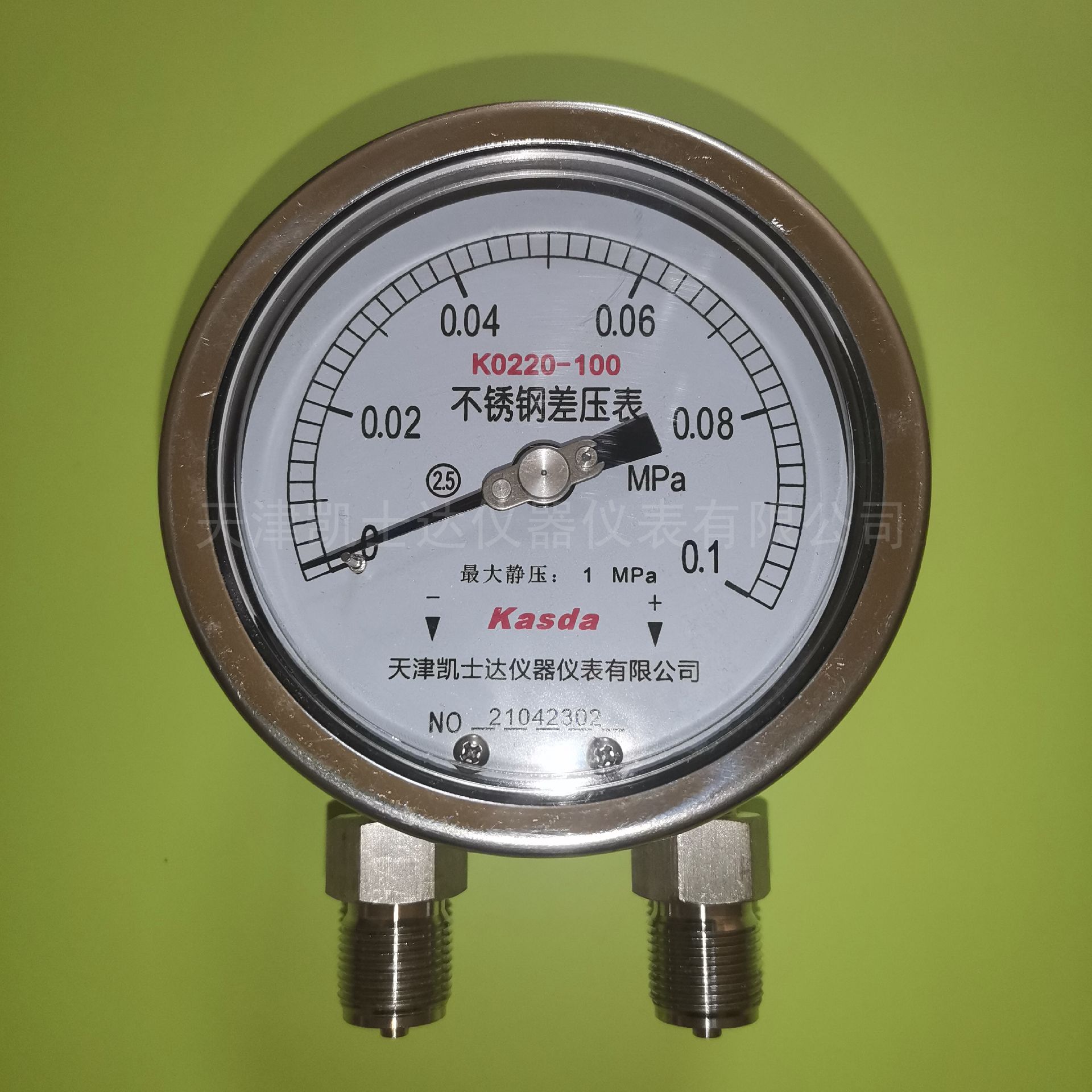

K0220 Liquid differential pressure gauge, stainless steel differential pressure gauge Filter differential pressure test
product overview
K0220 liquid differential pressure gauge, stainless steel differential pressure gauge filter differential pressure detection,is a product developed and produced by Tianjin Kaishida Instrument Co., Ltd. after years of painstaking research and development,suitable for measuring the same pressure source or different pressure sources of non-crystalline and solidified, with or without corrosive liquid, gas, steam, and other media pressure difference. Widely used in machinery, metallurgy, petroleum, chemical industry, electric power, water conservancy and other industries, for circulation cooling, lubrication and filtration of gas and hydraulic equipment and differential pressure display or control of pressure balance comparison system.main technical parameters
1, working medium viscosity: <1× 10 ‐³ m ²/s;
2, working environment temperature: -20 ~+80℃;
Relative humidity:≤ 85%;
4, shell material: stainless steel (304) shell or cast aluminum shell arbitrary choice;
5. Materials in contact with media:
1), joint: carbon steel chrome plating; stainless steel (1Cr18Ni19T;316L;301;304) optional;
2) Diaphragm: stainless steel 1Cr18Ni19T; stainless steel 316L optional;
3) Bellows: beryllium bronze; stainless steel (1Cr18Ni19T;316L;301;304) optional;
6, positive and negative joint center spacing: 60 surface area 30mm;100 surface area 45 mm;150 surface area 60 mm;
7. Connector thread: M20× 1.5 external thread;60 surface area connector thread is M14× 1.5 external thread;
8. Joint mark: high pressure joint is +, low pressure joint is-; high and low pressure interfaces shall not be connected reversely, otherwise the instrument will be damaged.
product feature
The instrument is of stainless steel structure with strong corrosion resistance
The control meter is symmetrical design, high static pressure resistance and strong overload resistance.
Adopt imported high-performance elastic elements, small transmission error, high indication control accuracy, accurate measurement
Very high reliability and stability, good user response
Voltage control range continuously adjustable from zero to full scale
Instrument price is reasonable, is the ideal substitute for imported similar products
Range Reference Selection Table: Serial Number RangeSelectability Large
Order Notice
1, measuring range (please indicate the pressure unit)
2, * large static pressure(* large working pressure)
3. Instrument installation mode(axial, radial, with edge)
4, threaded interface (standard for M20x1.5)
5. Other special technical requirements
Liquid special differential pressure gauge, differential pressure gaugerange selection table:serial number range ability serial number range ability serial number range ability A 0~3KPa H 0~100KPa O 0~2.5MPa B 0~6KPa I 0~160KPa P 0~4.0 MPa C 0~10KPa J 0~250KPa Q 0~6.0 MPa D 0~16KPa K 0~400KPa R 0~10 MPa E 0~25KPa L 0~600KPa user-specified F 0~40KPa M 0~1. 0MPa G 0~60KPa N 0~1.6MPa
